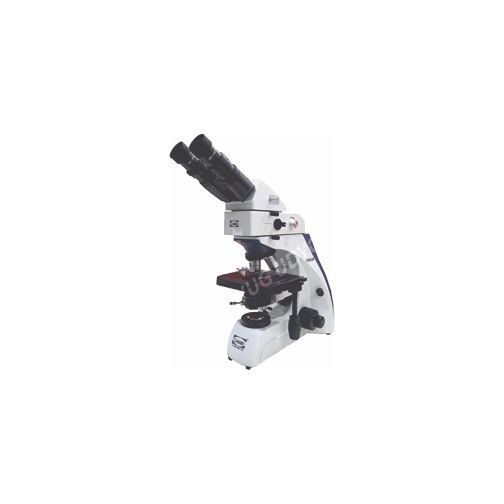

FLUORESCENT MICROSCOPE ( NU-407 )
Technical Specification |
| Optical System | Universal Infinite Optical System |
| Viewing Head | Siedentopf Binocular Viewing Head, Inclined at 30° Interpupillary 48mm-75mm |
| Eyepiece | Wide Field Eyepiece WF 10X / F.N. 22mm |
| Nosepiece | Backward Quadruple Nosepiece above with Filter Slot |
| Objectives | Infinite High Contrast Plan Achromatic Objectives 4X, 10X, 40X & 100X |
| Condenser | N.A. 1.25 Kohler Illumination Condenser with Diaphragm |
| Focusing System | Coaxial coarse and fine adjustment, Fine Division 0.002mm |
| Stage | Double Layer Mechanical Stage 179 x 158mm, |
| Illumination | 6V 20W Halogen Lamp or LED or Battery Backup, Brightness Adjustment |
| Dimensions & Weight | 50 x 40 x 51cm & 12.54kg Approx. |
| Fluorescent Attachment | Blue Filter B Wave Band |
| Optional Accessories (On Extra Cost) : Green Filter, UV Filter, V Filter, Seidentopf Trinocular Viewing Head, Ceramic Coated Stage, Quintuple Nosepiece, Dark Field or Phase Contrast Attachment, Polarisation Attachment, Digital Camera, USB CMOS Camera, LCD Screen & HDMI Cameras, Image anaylsis software, Battery Backup etc. | |
